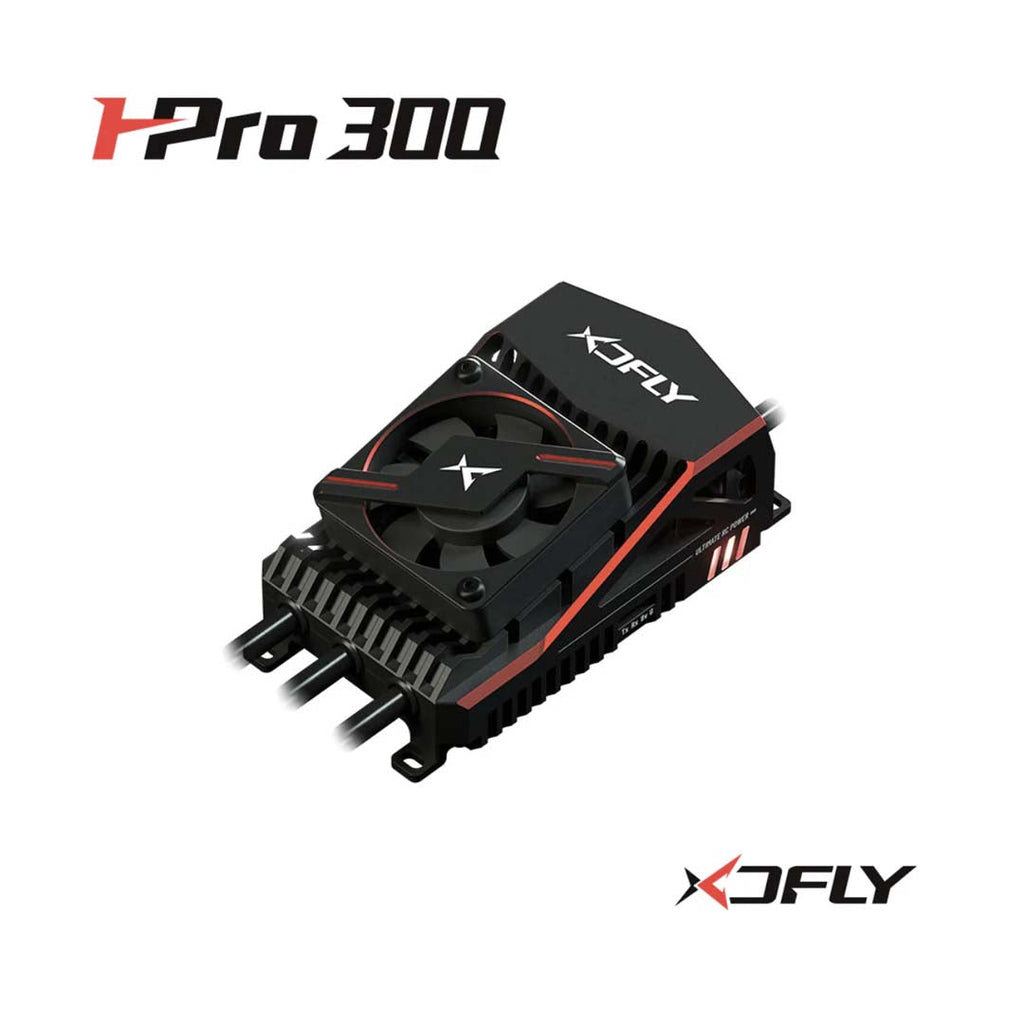

XDFly HPro 300A HV 6-14S SBEC ESC

The XDFly HPro 300A HV SBEC is a high-power brushless electronic speed controller for 700–800 class electric helicopters and large fixed-wing aircraft.

Key features

• 300A continuous current, 400A peak current
• 6–14S LiPo input
• Adjustable 6–12V switch-mode BEC, 10A continuous and 35A peak
• 170 MHz 32-bit G4 processor with high-efficiency governor algorithm
• Temperature-controlled cooling fan
• Real-time telemetry support for Mikado VBar Control Touch/Evo, Rotorflight 2, Futaba SBUS2, Jeti, MSH Brain, and iKon
• Programming through the XDFly iOS/Android app, VBar Control Touch/Evo, Rotorflight 2, or Jeti
• RGB status light with selectable colors
• Protection for abnormal input voltage, startup faults, over-temperature, signal loss, overload, low voltage, and over-current

Specifications

• Model: HPro 300A HV SBEC
• Input voltage: 6–14S LiPo
• Current: 300A continuous / 400A peak
• BEC: 6–12V adjustable, 10A continuous / 35A peak
• Dimensions: 95 × 57 × 38 mm without fan; 95 × 57 × 42 mm with fan
• Weight: approximately 320 g
• Applications: 700–800 class electric helicopters and large fixed-wing aircraft
